24-bit DAQ24USB-XR Analog-Digital Converter
DAQ Systems’ 24-bit USB data acquisition system, the DAQ24USB-XR supports sensor digitization logging under Windows or Linux but with higher dynamic range (than the DAQ24USB) at faster sample rates and lower cost. The DAQ24USB-XR is based on the Texas Instruments ADS1255 24-bit analog-digital Converter. Data is recorded in text format and presented graphically in real-time with the bundled DAQ-Sys-Lab Java data acquisition app (see graphic, below). This 24-bit USB analog-digital converter runs standalone with power from USB. The DAQ24USB-XR offers programmable sensitivity, digital input/output, PC/104 form-factor, auxiliary 10-bit and temperature channels and USB connection simplicity.

- Multi-channel USB 24-bit recording/digitizing/data logging
- Analog-digital converter (ADC) for PC/104 systems
- Compatible and upgradeable to
- Seismic, strong-motion, earthquake recording and lab experiments
- Robotics
- High resolution sensory recording – accelerometer, displacement, pressure…

- Expansion via USB hub
- Improved dynamic range at higher sample rates
- Wide dynamic range
- Simultaneous channel sampling to sub-audio band
- Auxiliary digital I/O and 10-bit analog inputs
- Software-controlled amplifier
- Onboard temperature sensor
- Small PC/104 form factor
- USB powered – no power supply needed
- Switchable external power for active sensors
- Multi-platform data logging (Windows or Linux)
- Output file compatible with MS Excel and MATLAB
- OEM board or turn-key system

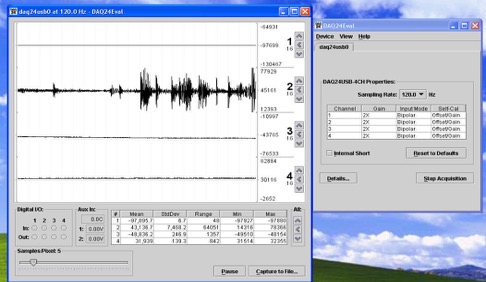

DAQ24USB DAQ-Sys-Lab Java App
